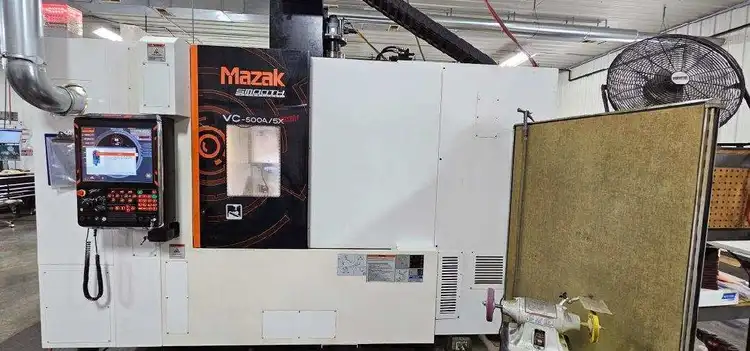

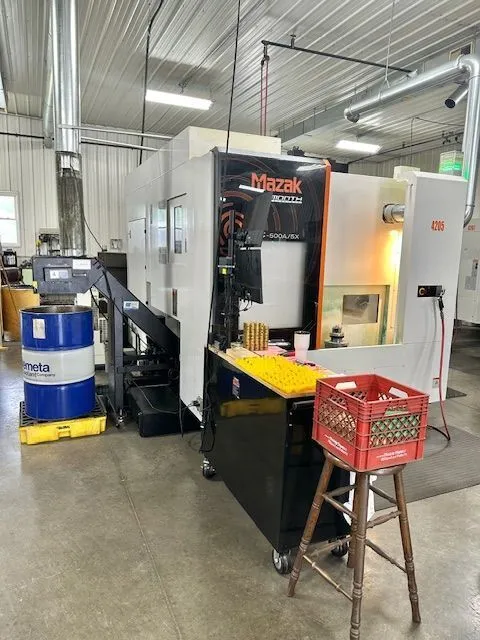

MAZAK VC 500A/5X CNC 5 AXIS TWIN FACTORY TWIN PALLET MACHINING CENTER

MAZAK VC 500A/5X CNC 5 AXIS TWIN FACTORY TWIN PALLET MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
$109,000.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC 5 Axis Machines
Manufacturer:
MAZAK
Model:
VC 500A/5X TWIN PALLET
Year:
2018
Stock #:
9927
Status:
For Sale
Serial #:
291726

Description

MAZAK VC 500A/5X CNC 5 Axis Machining Center, Model: VC 500A/5X Twin Pallet, 2018. Compact and efficient, ideal for complex machining tasks. Contact for more details on this well-maintained, pre-owned equipment.

Number Of Tables / Pallets22
Weight On Table440 lb199.6 kg
Main Spindle Horse Power15 hp11.2 kW
Spindle Nose To Table4.5224"114.87 mm
Main Spindle Speeds20,000 RPM20,000 RPM
Main Spindle Taper4040
X - Axis Travel21.85"554.99 mm
Y - Axis Travel19.88"504.95 mm
Z - Axis Travel20.07"509.78 mm
B - Axis Travel+ - 110 DEGREES+ - 110 DEGREES
C - Axis Travel Table Indexing360360
Rapid Traverse Rate - X1,181 in/min.30 m/min.
Rapid Traverse Rate - Y1,181 in/min.30 m/min.
Rapid Traverse Rate - Z1,181 in/min.30 m/min.
Cutting Feed Rate0 in/min.0 m/min.
Automatic Tool Changer6060
Tool Diameter4.92"124.97 mm
Tool Length10.23"259.84 mm
Tool Weight17 lb7.7 kg
Machine Weight14,330 lb6,500 kg
ControlCNC (MAZATROL SDMOOTH X CNC COLOR CONTROL)CNC (MAZATROL SDMOOTH X CNC COLOR CONTROL)
Weight0.000.00

MAZAK MAZATROL SMOOTH X CONTROL
8MB OF MEMORY
FACTORY AUTO 2 PALLET CHANGER
MT CONNECT ADAPTER
AUTO PECKING CYCLE
SMOOTH SET AND INSPECT
5-AXIS MACHINING PACKAGE FOR SMOOTH X
60 AUTO TOOL CHANGER
SYNCHRONIZED TAPPING
G00 SLOPE CONSTANT
CHIP CONVEYOR
EIA/ISO
SPIRAL EIA 3D COMPENSATION
ROTATION, GEOMETRIC, SCALING
EXT DATA I/O
SHAPE COMP, THREAD, INVERSE TIME
3-D CO-OR ROT.
POLAR COORDINATE INPUT
COMPARISON STOP
VARIABLE 600 SETS
SIMULTANEOUS 5 AXIS
EIA HELICAL TAP AND PATTERN CYCLES
TILTED WORKPLANE
WORK POSITION ERROR COMP.
213 PSI COOLANT THRU THE SPINDLE
HAND HELD MPG
ADVANCED ETHERNET / IP
DUAL PROBING KIT RMP 600, RTS-AA W/EIA INSPECTION PLUS SOFTWARE
MACHINE INSTALLED NEW 3/2020
