DOOSAN DNM 750L II 4 AXIS CNC VERTICAL MACHINING CENTER

DOOSAN DNM 750L II 4 AXIS CNC VERTICAL MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
$159,000.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
DOOSAN
Model:
DNM 750L II
Year:
2019
Stock #:
9924
Status:
For Sale
Serial #:
MV0099-000078

Description

DOOSAN DNM 750L II CNC Vertical Machining Center, model year 2019, features a single 85"x25.9" table, 8,000 RPM spindle, 24 tool ATC, and a weight capacity of 3,978 lb. Equipped with Doosan Fanuc control, coolant thru spindle, and a chip conveyor.

Number Of Tables / Pallets11
Table-L85"2,159 mm
Table-W25.9"657.86 mm
Weight on Table3,978 lb1,804.4 kg
Spindle Nose To Table7.933"201.5 mm
X - Axis Travel85"2,159 mm
Y - Axis Travel30"762 mm
Z - Axis Travel25.6"650.24 mm
Rapid Traverse Rate - X1,181 in/min.30 m/min.
Rapid Traverse Rate - Y1,181 in/min.30 m/min.
Rapid Traverse Rate - Z827 in/min.21 m/min.
Spindle Speed8,000 RPM8,000 RPM
Spindle Taper50 BT50 BT
Main Motor20 hp14.9 kW
Automatic Tool Changer2424
Tool Diameter4.9"124.46 mm
Tool Length13.8"350.52 mm
Tool Weight33.1 lb15 kg
Machine Weight30,423 lb13,799.7 kg
ControlCNC (DOOSAN FANUC SERIES I CNC CONTROL)CNC (DOOSAN FANUC SERIES I CNC CONTROL)

DOOSAN FANU SERIES I CNC CONTROL
COOLANT THRU SPINDLE SYSTEM
BIG PLUS SPINDLE

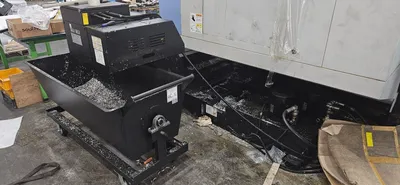

CHIP CONVEYOR
DOOSAN TOOL LOAD MONITORING
ETHERNET FUNCTION
SAMCHULLY S-320 F-8, 320 MM NC 4TH AXIS ROTARY TABLE
