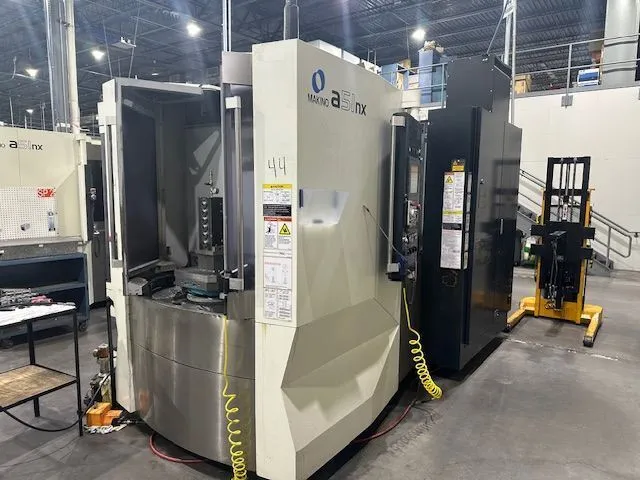

MAKINO A 51NX CNC 4 AXIS HORIZONTAL MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
Explore precision with the 2011 MAKINO A51NX CNC 4 Axis Horizontal Machining Center, offering 2360 IPM rapid traverse, 14,000 RPM spindle, and 60-tool auto changer. Fully equipped with FANUC 31i CNC control, helical interpolation, and a 2-pallet changer, cool thru spindle and probing
Pallet Size: 15.7" x 15.7"
Number Of Pallets: 2
Pallet Weight Capacity: 880
Pallet Surface to Spindle Center: 3.1" ~ 28.3"
Pallet Center To Spindle Gage Line: 3.9" ~ 29.1"
Workpiece Dimensions: 0
X - Axis Travel: 22"
Y - Axis Travel: 25.2"
Z - Axis Travel: 25.2"
B - Axis Travel: .0001 N/C CONTOURING
Rapid Traverse Rates X, Y, Z: 2360 IPM
Rapid Traverse Rate B Axis: 0
Cutting Feed Rate: 1968 IPM
Spindle Speed: 14,000 RPM
Spindle Taper: 40
Number Of Ranges: 0
Main Motor: 30 HP
Automatic Tool Changer: 60
Tool Diameter: 3.76", 6.7"
Tool Length: 16.9"
Tool Weight: 26.4" LBS.
Tool Change Time: .9 SEC.
Machine Weight: 19,620
FANUC 31I CNC CONTROL WITH PRO 5
12.1 COLOR LCD / 320 METERS
200 PROGRAMS
DATA CENTER 4MB
FULL 4TH AXIS N/C ROTARY TABLE
BALL SCREW CORE COOLING
200 TOOL OFFSETS
TOOL OFFSET MEMORY C
HELICAL INTERPOLATION
HIGH SPEED SKIP FUCTIONS
CUSTOM MACRO 100 VARIABLES
PORTABLE HAND HELD MPG
EXTERNAL SETTING ORIENTATION
2-PALLET CHANGER
CHIP REMOVAL SYSTEM
BLUM TOOL LENGTH MEASUREMENT SYSTEM
MARPOS PART PROBE
ALL AVAILABLE MANUALS
COOLANT THRU SPINDLE
MIST COLLECT SYSTEM
BROKEN TOOL DETECTION
