DOOSAN NHM 8000 CNC 4 AXIS HORIZONTAL MACHINING CENTER

DOOSAN NHM 8000 CNC 4 AXIS HORIZONTAL MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Horizontal Machining Centers
Manufacturer:
DOOSAN
Model:
NHM8000
Year:
2015
Stock #:
9906
Status:
For Sale

Description

DOOSAN NHM 8000, a 2016 CNC Horizontal Machining Center, offers precision and reliability for advanced manufacturing. Ideal for enhancing productivity with its robust design. Perfect for those seeking a high-performance used machine.

Pallet Size - L31.5"800.1 mm
Pallet Size - W31.5"800.1 mm
Number of Pallets22
Pallet Weight Capacity4,409 lb1,999.9 kg
Pallet Surface to Spindle Center5.953"151.21 mm
Pallet Center To Spindle Gage Line3.144"79.858 mm
Workpiece Dimensions5,761"146,329 mm
X - AxisTravel55.1"1,399.5 mm
Y - Axis Travel41.3"1,049 mm
Z - Axis Travel47.2"1,198.9 mm
B - Axis Travel.001.001
Rapid Traverse Rate - X1,181 in/min.30 m/min.
Rapid Traverse Rate - Y1181 ipm
Rapid Traverse Rate - Z1181 ipm
Rapid Traverse Rate - B1,181 in/sec.1,799.8 m/min.
Cutting Feed Rate472 in/sec.719.3 m/min.
Spindle Speed8,000 RPM8,000 RPM
Spindle Taper50 CT BIG PLUS50 CT BIG PLUS
Number of Ranges22
Main Motor50 hp37.3 kW
Automatic Tool Changer9090
Tool Diameter5.1"129.54 mm
Tool Length24.8"629.92 mm
Tool Weight66 lb29.9 kg
ControlCNC (FANUC 31I-B CNC COLOR CONTROL)CNC (FANUC 31I-B CNC COLOR CONTROL)
Weight49,60349,603

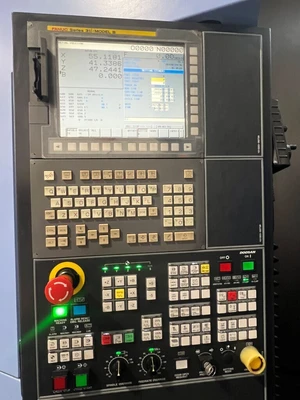

FANUC 31IB CNC CONTROL
COOLANT THRU SPINDLE
AIR LIMIT SENSING
CONTROL AIR CONDITIONER
200 PAIRS OF TOOL OFFSETS
MIST COLLECTOR
AUTOMATIC POWER OFF
DOOSAN TOOL LOAD MONITORING
PORTABLE MPG
EMBEDDED ETHERNET FUNCTION
AICC II 600 BLOCKS
CHIP CONVEYOR
RENISHAW PROBING
FULL N/C ROTARY 4TH AXIS TABLE
