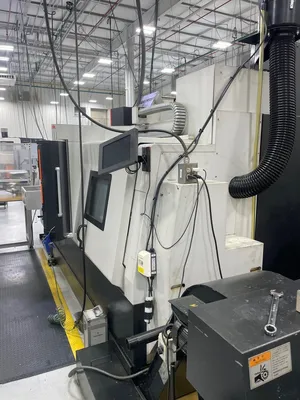

MAZAK INTEGRX 200 IVST/1500 CNC MULTI TASKING CENTER
Have one to sell?
ConditionUsed
1 available
MAZAK INTEGREX 200-IV ST-1500U, used CNC lathe with Y-Axis/Multi-Axis. Features 8" chuck size, 30 HP spindle, 5000 RPM speeds, and 26" turning diameter. Ideal for precision machining needs.
Swing Over Bed: 26.5"
Maximum Machining Diameter : 26"
Maximum Cutting Length: 60''
Spindle Nose Main Spindle: A2 - 8
Spindle Bore Main: 2.99''
Bar Capacity : 2.5''
Spindle Speeds: 5000 RPM
Main Motor: 40 HP
C - Axis Main Spindle Minimum Indexing: .0001 Degree
X - Axis Travel: 22.8"
Z - Axis Travel: 60.82"
Y - Axis Travel: +/- 3.15"
B - Axis Travel: 225 Degrees
W - Axis Travel Sub Spindle: 60.24"
Spindle Nose : A2 - 6
C - Axis Sub Spindle Minimum Indexing: .0001 Degree
Spindle Bore Sub Spindle: 2.99''
Sub Spindle Speeds: 5000 RPM
Sub Spindle Motor: 30 HP
Rapid Traverse Rates X, Z, W, Y : 1496, 1496, 1181, 1023 IPM
Rapid Traverse Rate B, C: 555, 555 RPM
Tool Magazine Capacity: 40 ATC
Rotary Tools Spindle Nose: CAPTO C6
Rotary Tool Spindle Speeds: 12,000 RPM
Rotary Tool Motor: 25 HP
Max Tool Length: 11.81''
Max Tool Dia. / Adjacent: 3.54''/4.92''
Lower Turret Tool Positions: 9 Tools
Maximum Tool Weight: 22 LBS.
| COOLANT THRU SPINDLE |
| SPINDLE CHILLER |
| USB PORT |
(3) LOWER TURRET HOLDERS.
(100) CAPT C6 TOOL HOLDERS.
(5) SPINDLE LINERS UP TO 2.75"
SIMULTANEOUS 5 AXIS.
NEW B AXIS SPINDLE 6 MONTHS AGO.
AUTO PARTS CATCHER.
BAR FEED INTERFACE.
(2) 8" 3 JAW HYDRAULIC CHUCKS.
(2) ROYAL COLLET CHUCKS.

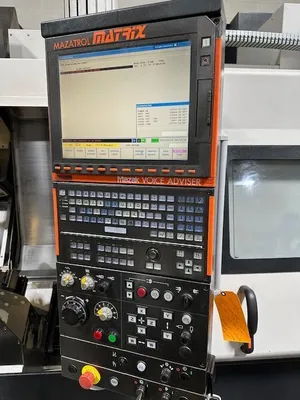

EIA, HIGH SMOOTHING CONTROL, SPIRAL, EIA 3D COMP.
ROTATION, GEOMETRIC, SCALING, EXT DATA I/O.
SHPE COMP, THREAD, SUB C-AXIS CONTROL, INVERSE TIME.
3-D CO-OR. ROTATION, AUTO ATLM TOOL SETTER, POLAR COORDINATE INPUT.
COMPARISON STOP, G54.1, SYNC TAP MILL HEAD, INCH/ METRIC, ROT-AXIS SHAPE COMP.
G00 SLOPE CONST, VARIABLE 600 SETS,CYLINDER, TILTED WORK PLANE, 5-AXIS TOOL COMP.
EIA HELICAL TAP, EIA PATERN CYCLE, TOOL CENTER POINT CONTROL,.
PROGRAM MEMORY EXPANSION, LOWER TURRET MAZATROL.
MAZAK SUPERFLOW T8/1000 HIGH PRESSURE THROUGH MILL HEAD
ROYAL FILTERMIST FX 575 MIST COLLECT SYSTEM
