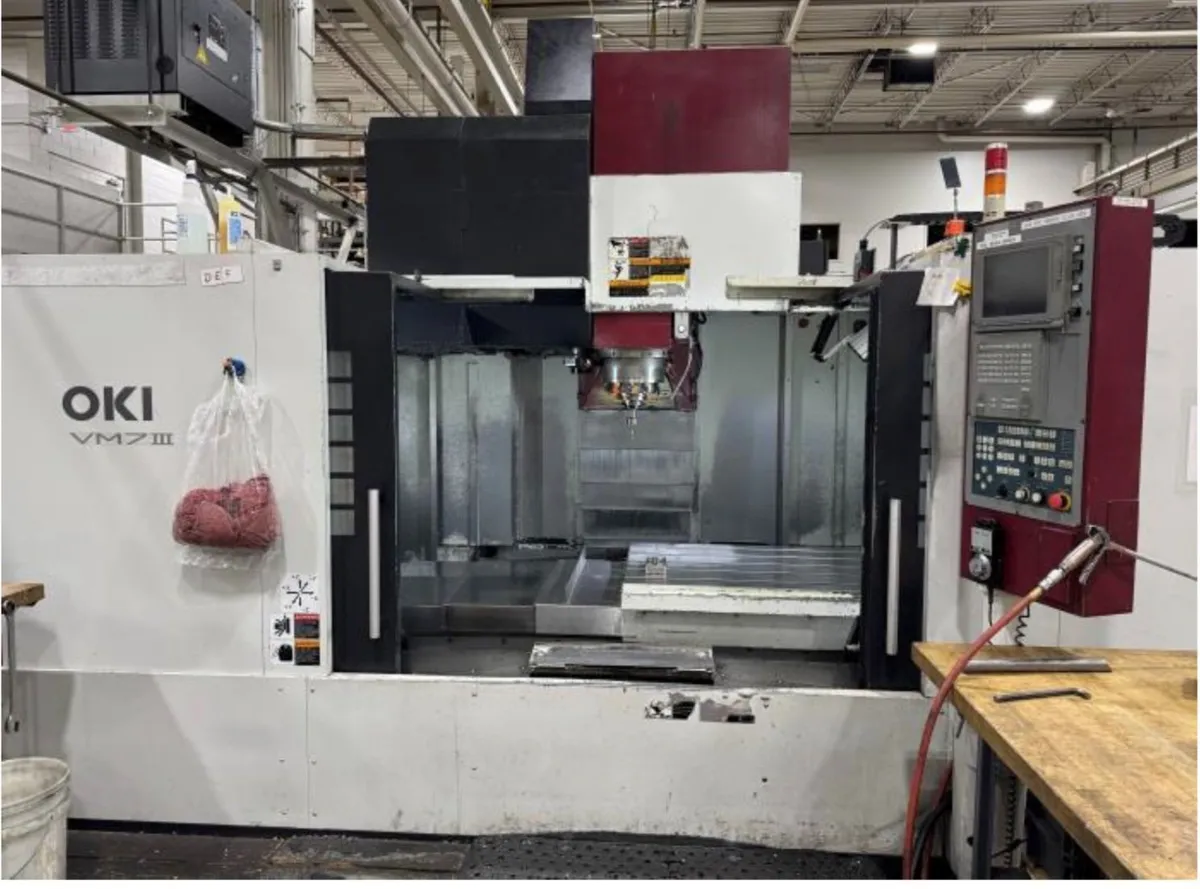

OKK VM 7III CNC 3 AXIS VERTICAL MACHINING CENTER

OKK VM 7III CNC 3 AXIS VERTICAL MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
OKK
Model:
VM7 III
Year:
2004
Stock #:
9891
Status:
For Sale
Serial #:
559

Description

OKK VM7 III, a 2004 vertical machining center, features X/Y/Z travel of 60.24"/29.13"/25.98", 13000 RPM spindle speed, #50 taper, 20 HP main motor, and 30-tool automatic changer. Ideal for precise, reliable manufacturing.

Number Of Tables / Pallets11
Table-L65"1,651 mm
Table-W30"762 mm
Weight on Table3,300 lb1,496.9 kg
Spindle Nose To Table0"0 mm
X - Axis Travel60"1,524 mm
Y - Axis Travel30"762 mm
Z - Axis Travel26"660.4 mm
Spindle Speed13,000 RPM13,000 RPM
Spindle Taper5050
Main Motor35 hp26.1 kW
Automatic Tool Changer3030
Tool Diameter5.1"129.54 mm
Tool Length11.8"299.72 mm
Tool Weight30 lb13.6 kg
Machine Weight29,800 lb13,517.1 kg
ControlCNC (MITSUBBISHI NEOMATIC 635 CNC CONTROL)CNC (MITSUBBISHI NEOMATIC 635 CNC CONTROL)
DimensionsH:114", W: 188, L:176"H:114", W: 188, L:176"
RIGID TAPPING
SPINDLE CHILLER

CHIP CONVEYOR
HIGH PRESSURE THRU SPINDLE COOLANT
RIGID TAPPING
