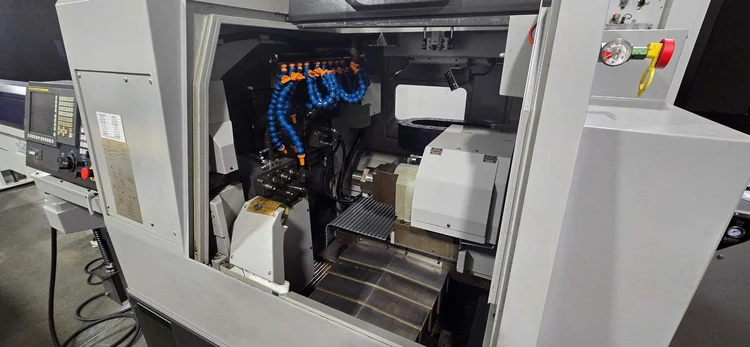

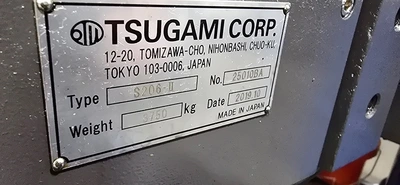

TSUGAMI S206-II CNC 6 AXIS SWISS TYPE SCREW MACHINE
Have one to sell?
ConditionUsed
1 available
Working Barstock Diameter: 3mm ~ 20mm
Maximum Machining Length: 210mm
Maximum Main Spindle Drilling DIameter: 12mm
Maximum Main Spindle Tapping Diameter: M10
Maximum Back Spindle Chucking Diameter: 20mm
Maximum Back Spindle Drilling Diameter: 10mm
Maximum Back Spindle Tapping Diameter: M10
Maximum Cross Drilling Diamter: 88 Front/Rear/Back Tool Post
Maximum Cross Tapping Diameter: M6 Front/Rear/Back Tool Post
Maximum Tool Spindle Slotting Cutter Diameter: 30mm
Maximum Back Drilling Diameter: 8mm
Maximum Back Tapping Diameter: M6
Main Spindle Speed: 200 ~ 10,000 RPM
Main Spindle Indexing: C-Axis
Back Spindle Speed: 200 ~ 10,000 RPM
Rotary Guide Bushing Speed: 10,000 RPM
Tool Storage Capacity (std./opt): 38/47
Tool Size: .5" x .5" x3.35"
Rapid Traverse Rate: 0
Controlled Linear Axis: 6 Axis
Main Spindle Drive Motor: 3/5 HP
Back Spindle Drive Motor: 3/5 HP
Cross Drilling Motor: 1.4HP/ Rear & Back 2HP
Maximum Machining Length Chucker Mode: 45mm
Machine Dimensions: 84.6" x 50" x 77.56"
Machine Weight: 3900 Lbs.
ALL MANUALS SCHEMATICS AND DOCUMENTATION
ALL ROTARY DRIVEN TOOLS
ALL COLLETS
TRI MIST 850 MIST COLLECTOR
BACK SPINDLE FULL C - AXIS
MAIN SPINDLE COLLET CHUCK UNIT
BACK SPINDLE COLLET CHUCK UNIT
SPINDLE COOLING FOR MAIN AND SUB MOTORS
CONTINUOUS THREAD CUTTING
ROTARY TOOL DRIVE SYSTEM
FANUC 32I-B CNC CONTROL UNIT
COOLANT THRU SUB SPINDLE
V2 HO8 2000 PSI HIGH PRESSURE COOLANT (8 PORTS)
X1 AXIS SCALE
MH 500 CHIP CONVEYOR
FIRE TRACE SURPRESSION SYSTEM

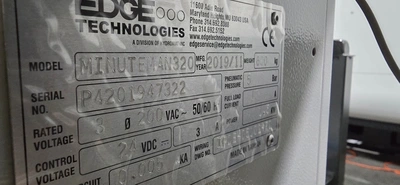

MINUTEMAN 320 2 CHANNEL 12' BAR FEED SYSTEM
RUN TIME 5452
CUT TIME 5328
POWER ON TIME 6859
