DN SOLUTIONS PUMA GT 3100L CNC UNIVERSAL TURNING CENTER WITH HYDRAULIC STEADY REST

DN SOLUTIONS PUMA GT 3100L CNC UNIVERSAL TURNING CENTER WITH HYDRAULIC STEADY REST

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, 2-Axis & 3-Axis
Manufacturer:
DN SOLUTIONS
Model:
Puma Gt 3100L
Year:
2023
Stock #:
9833
Status:
For Sale

Description

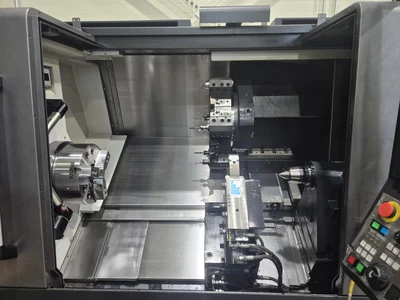

Enhance your operations with the 2023 used DN Solutions Puma GT 3100L CNC Turning Center by DOOSAN. Features include a 28.3" swing over bed, 18.9" turning diameter, and 53.1" Z-axis travel. Equipped with a hydraulic steady rest for precision.

Swing Over Bed28.3"718.82 mm
Machining Length50.2"1,275.1 mm
Distance Between Centers0"0 mm
Distance Between Spindles0"0 mm
Chuck Size 112"304.8 mm
Spindle Nose 1A2-11A2-11
Spindle Bar Capacity 14"101.6 mm
Turning Diameter, Shaft Diameter18.9"480.06 mm
Spindle Speeds 12,800 RPM2,800 RPM
Spindle Horsepower 145 hp33.6 kW
Spindle Bore Diameter 14.4"111.76 mm
X - Axis Travel10.2"259.08 mm
Z - Axis Travel53.1"1,348.7 mm
C - Axis Travel 10°0°
Rapid Traverse Rate - X1945 in/min.400.1 mm/sec.
Rapid Traverse Rate - Z11,181 in/min.500 mm/sec.
Gear Ranges00
Turret Configuration 11212
Tailstock Quill Diameter3.9"99.06 mm
Tailstock TaperMT #5 LIVE CENTERMT #5 LIVE CENTER
Tailstock Quill Travel3.9"99.06 mm
Programmable TailstockYESYES
Tailstock Travel45.3"1,150.6 mm
Bar Capacity4"101.6 mm
TailstockYESYES
ControlCNC (DOOSAN FANUC SERIES I)CNC (DOOSAN FANUC SERIES I)
Weight15212 LBS.15212 LBS.
128 PAIRS OF TOOL OFFSETS
9/23 MFG DATE
CHIP CONVEYOR
CHUCK CLAMPING CONFIRMATION
DOOSAN TOOL LOAD MONITORING
PROGRAMMABLE TAILSTOCK
SMW SLU 3.1-ZS HYDRAULIC STEADY REST
TOOL PRESETTER

DOOSAN FANUC SERIES I CNC CONTROL
TOOL PRESETTER
CHIP CONVEYOR
15" COLOR LCD MONITOR
LIVE CENTER
PROGRAMMABLE TAILSTOCK
SMW SLU 3.1-ZS HYDRAULIC STEADY REST 20 - 165 MM CAPACITY
285 CUTTING HOURS
CHUCK CLAMP CONFIRMATION
TOOL LOAD MONITORING
128 PAIRS OF TOOL OFFSETS
CHIP BUCKET
9/2023 MFG DATE
