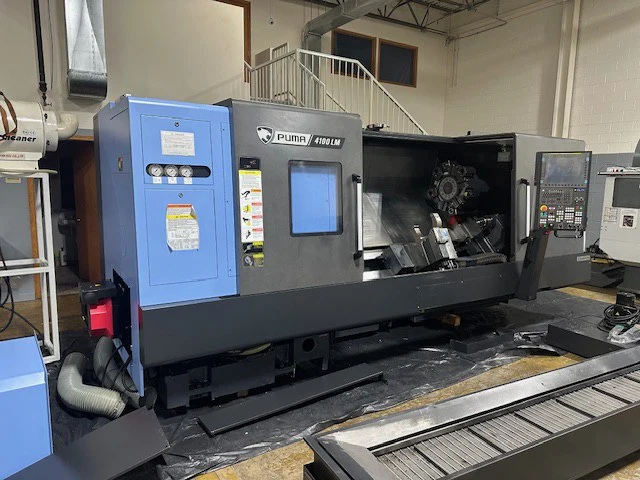

DN SOLUTIONS PUMA 4100LMB CNC UNIVERSAL TURNING CENTER WITH MILLING AND HYDRAULIC STEADY REST

DN SOLUTIONS PUMA 4100LMB CNC UNIVERSAL TURNING CENTER WITH MILLING AND HYDRAULIC STEADY REST

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, 2-Axis & 3-Axis
Manufacturer:
DN SOLUTIONS
Model:
PUMA 4100LMB
Year:
2023
Stock #:
9812
Status:
For Sale

Description

Explore precision with the 2023 DN SOLUTIONS PUMA 4100LMB CNC Universal Turning Center. Equipped for versatile 2-axis and 3-axis lathing, it features a 15" chuck, 50 HP spindle, and a machining length of 79.8". Perfect for heavy-duty tasks.

Swing Over Bed31.1"789.94 mm
Machining Length79.8"2,026.9 mm
Distance Between Centers84.7"2,151.4 mm
Distance Between Spindles0"0 mm
Chuck Size 115"381 mm
Spindle Nose 1A2 - 11A2 - 11
Spindle Bar Capacity 14.6"116.84 mm
Turning Diameter, Shaft Diameter22"558.8 mm
Spindle Speeds 12,000 RPM2,000 RPM
Spindle Horsepower 150 hp37.3 kW
Spindle Bore Diameter 15.2"132.08 mm
X - Axis Travel14.3"363.22 mm
Z - Axis Travel84.8"2,153.9 mm
C - Axis Travel 10°0°
Rapid Traverse Rate - X1630 in/min.266.7 mm/sec.
Rapid Traverse Rate - Z1787 in/min.333.2 mm/sec.
Gear Ranges22
Turret Configuration 11212
Turret Rotary Tool Spindle Speed 14,000 RPM4,000 RPM
Turret Rotary Tool Horse Power 114.8 hp
Tailstock Quill Diameter4.7"119.38 mm
Tailstock TaperMT 6MT 6
Tailstock Quill Travel4.7"119.38 mm
Programmable TailstockYESYES
Tailstock Travel80.7"2,049.8 mm
# Axis22
Bar Capacity4.6"116.84 mm
Tailstock'Yes''Yes'
Sub Spindle'No''No'
ControlCNC (FANUC i)CNC (FANUC i)
Weight0.000.00

DOOSAN EZ GUIDE I CONVERSATIONAL PROGRAMMING
TOOL PRESETTER
SMW SLU-4-ZS HYDRAULIC STEADY REST (9.68" CAPACITY)
PROGRAMMABLE TAILSTOCK
.001 C-AXIS INDEXING
(2) I. D. ROTARY HEADS
(2) O. D. ROTARY HEADS
SPINDLE CHILLER
CUSTOM MACRO
CHIP CONVEYOR
1129 CUTTING HOURS
FANUC SERIES I CNC CONTROL
AUTOMATIC TOOL SETTER
SMW SLU-4-ZS HYDRAULIC STEADY REST (9.68'' CAPACITY)
.001 C-AXIS SPINDLE INDEXING
ROTARY TOOLS 4000 RPM
(2) I.D. ROTARY HEADS
(2) O.D. ROTARY HEADS
