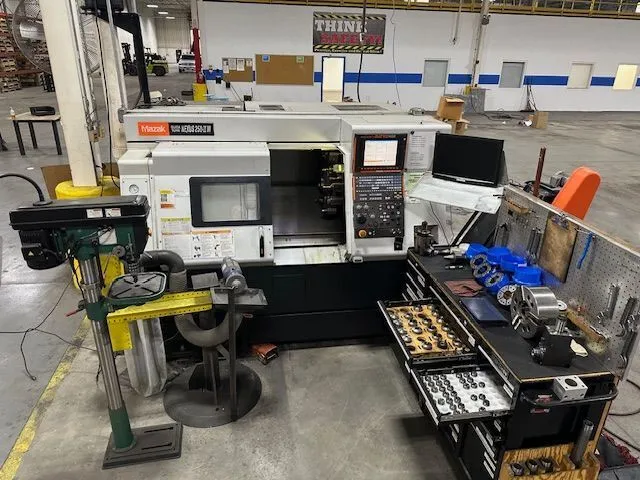

| Swing Over Bed | 26.5" | 673.1 mm |
| Machining Length | 19.85" | 504.19 mm |
| Distance Between Centers | 24" | 609.6 mm |
| Chuck Size 1 | 10" | 254 mm |
| Spindle Nose 1 | A2 - 8 | A2 - 8 |
| Spindle Bar Capacity 1 | 3" | 76.2 mm |
| Spindle Speeds 1 | 4,000 RPM | 4,000 RPM |
| Spindle Horsepower 1 | 35 hp | 26.1 kW |
| Spindle Bore Diameter 1 | 3.4" | 86.36 mm |
| X1 - Axis Travel | 9" | 228.6 mm |
| Z1 - Axis Travel | 22.7" | 576.58 mm |
| Rapid Traverse Rate - X1 | 1,181 in/min. | 500 mm/sec. |
| Rapid Traverse Rate - Z1 | 1,299 in/min. | 549.9 mm/sec. |

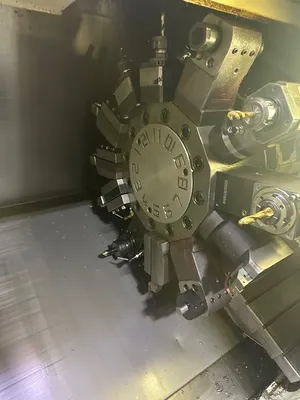

| Turret Configuration 1 | 12 | 12 |
| Turret Rotary Tool Spindle Speed 1 | 4,500 RPM | 4,500 RPM |
| Turret Rotary Tool Horse Power 1 | 7.5 hp | |
| Tailstock Taper | MT 5 | MT 5 |
| Programmable Tailstock | YES | YES |
| Tailstock Travel | 21.75" | 552.45 mm |
| # Axis | 3 | 3 |
| Bar Capacity | 3" | 76.2 mm |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'Yes' | 'Yes' |
| Sub Spindle | 'No' | 'No' |
| Control | CNC (MAZAK MAZATROL MATRIX CNC COLOR CONTROL) | CNC (MAZAK MAZATROL MATRIX CNC COLOR CONTROL) |
| Weight | 14000.00 | 14000.00 |

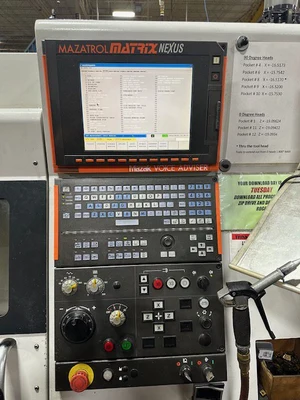

MAZATROL MATRIX CNC CONTROL

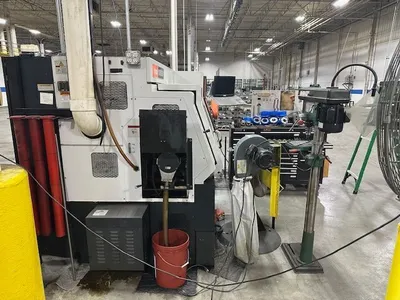

CHIP CONVEYOR
EIA, SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT DATA I/O
THREAD, INVERSE TIME, AUTO ATLM, POLAR COORDINATE INPUT
COMPARISON STOP, G54.1, SYNC MILL TAP, VARIABLE 600 MACRO
CYLINDRICAL INTERP.
EIA HELICAL TAP, EIA PATTERN CYCLE, TILTED WORK PLANE
PITCH ERROR COMP
MAZAK HIGH PRESSURE COOLANT
MIST COLLECT SYSTEM

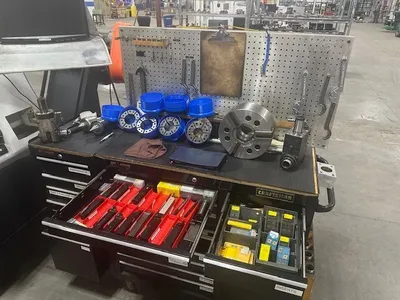

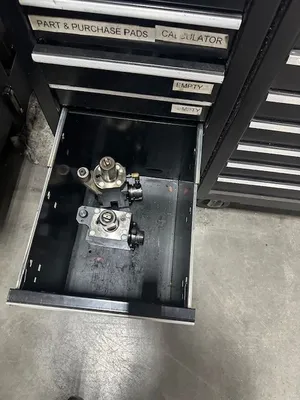

(2) O.D. ROTARY HEADS
(4) I.D. ROTARY HEADS
10" HYDRAULIC 3 JAW CHUCK

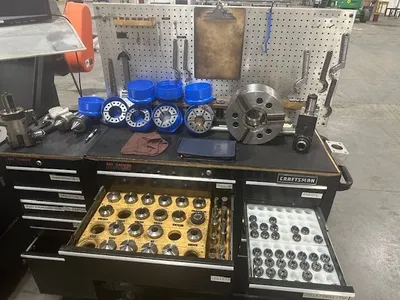

NEW ROYAL COLLET CHUCK
