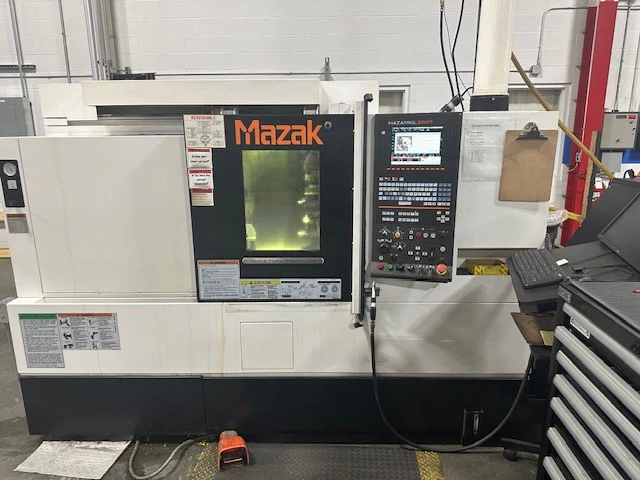

MAZAK QUICK TURN SMART 200 CNC UNIVERSAL TURNING CENTER

Swing Over Bed: 0
Turning Diameter, Shaft Diameter: 14"
Machining Length: 21.28"
Distance Between Centers: 22"
Distance Between Spindles: 0
Chuck Size 1, 2: 8"
Spindle Nose 1, 2: A2 - 6
Spindle Bore Diameter 1, 2: 2.9"
Spindle Bar Capacity 1, 2: 2.5
Spindle Speeds 1, 2: 5000 RPM
Gear Ranges: 0
Spindle Horsepower 1, 2: 20 HP
Spindle Torque: 0
X - Axis Travel 1, 2: 7.5"
Z - Axis Travel 1, 2: 22"
C - Axis Travel 1, 2: 0
W - Axis Travel Sub Spindle: 0
Rapid Traverse Rates X1, X2: 1181 IPM
Rapid Traverse Rates Z1, Z2: 1299 IPM
Rapid Traverse Rate W Axis: 555.0000
Rapid Traverse C Axis: 0
Turret Configuration 1, 2: 12
Turret Rotary Tool Spindle Speed 1, 2: 0
Turret Rotary Tool Horse Power 1, 2: 0
Tailstock Quill Diameter: 0
Tailstock Taper: 0
Tailstock Quill Travel: 0
Programmable Tailstock: YES
Tailstock Travel: 17.6
Machine Weight: 0
