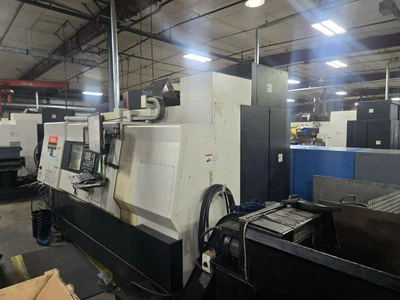

MAZAK INTEGREX 200 IIIST CNC MULTI-TASKING TURNING CENTER W/LOWER TURRET
Have one to sell?
ConditionUsed
1 available
Swing Over Bed: 26"
Turning Diameter: 26", 10.6" L.TRT.
Turning Length: 40"
Distance Between Centers: 0
Distance Between Spindles: 0
Chuck Size 1, 2: 8", 8"
Spindle Nose 1, 2: A2-6, A2-6
Spindle Bore Diameter 1, 2: 2.99"
Bar Capacity 1, 2: 2.5"
Spindle Speeds 1, 2: 5000, 5000 RPM
Spindle Horsepower 1, 2: 30, 25 HP
B - Axis Head Indexing: +/- 225 Degrees
B - Axis Milling Spindle Speed: 12000 RPM
B - Axis Milling Spindle Taper: KM 63
B - Axis Milling Spindle Horse Power: 20 HP
ATC For Milling Spindle: 40 ATC
Tool Diameter: 3.54" / 4.92"
Tool Length: 11.8"
Tool Weight: 22 Lbs.
X - Axis Travel X1, X2, X3: 22.8", 5.9"
Z - Axis Travel Z1, Z2, Z3: 41.14", 38.98"
Y - Axis Travel Y1, Y2, Y3: +/- 3.15"
C - Axis Indexing 1, 2: .0001, .001 Degrees
W - Axis Travel Sub Spindle: 41.34"
Rapid Traverse Rates X1, X2, X3: 1496, 1496 IPM
Rapid Traverse Rates Z1, Z2, Z3: 1023, 1023 IPM
Rapid Traverse Rates Y1, Y2, Y3: 1496 IPM
Turret Tool Positions 1, 2, 3: 9 Positions Lower
Turret Rotary Tool Speeds 1, 2, 3: 0
Turret Rotary Tool Horse Power 1, 2, 3: 0
Tailstock Quill Diameter: 0
Tailstock Taper: 0
Tailstock Quill Travel: 0
Programmable Tailstock: 0
Tailstock Travel: 0
Machine Weight: 20,660 Lbs.
MAZATROL 640MT PRO CNC COLOR CONVERSATIONAL CONTROL
EIA/ISO, CHANGE TO EIA, B AXIS ANGLE POSITIONING TURNING, BACKGROUND PATH CHECK
B-AXIS ANGLE POSITIONING TURNING
MULTI TOOL HOLDER / FLASH TOOL, SHAPE COMP, Y-AXIS CONTROL, SYNCH MILL TAP
THREAD START POINT COMP., DIRECT DRAWING SIZE INPUT, USER MACRO, 600 MACRO VARIABLES
USER MACRO INTERUPT, WORK COORDINATE SELECT, POLAR CORDINATE INPUT, CYLINDRICAL INTERP.
TOOL CENTER POINT CONTROL, SIMULTANEOUS 5-AXIS CONTROL, IEA HELICAL INTERP.
EIA COORDINATE ROTATION, B-AXIS CONTROL, ENHANCED Y-AXIS MAZATROL FACE 1 AND FACE 2
ROTARY AXIS SUB MICRON, EIA HELICAL TAP, SUB SP 1/1000 DEG. POSITIONING.
COOLANT THROUGH MILLING SPINDLE
COOLANT THROUGH MILL SPINDLE 213 PSI, FLOOD COOLANT LOWER TURRET 71 PSI
B-AXIS .0001 DEGREE INCRA. N/A CONTOURING
B-AXIS INDEX 5 DEGREE COUPLING CLAMP
AUTO CHUCK JAWS OPEN/CLOSE CONFIRMATION 1ST & 2ND SPINDLE
C1-C2 ROTARY AXIS SYNCHRONOUS OPERATION FUNCTION
AUTO TOOL LENGTH MEASUREMENT EYE
