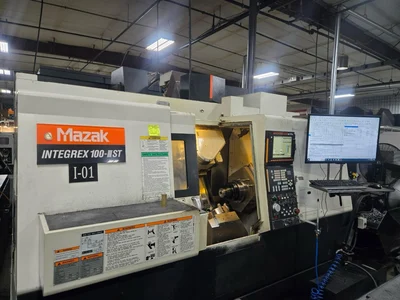

MAZAK INTEGREX 100III ST CNC MULTI-TASKING TURNING CENTER W/LOWER TURRET
Have one to sell?
ConditionUsed
1 available
Swing Over Bed: 21.46"
Turning Diameter: 21.46", 15.75" L.TRT.
Turning Length: 29.65"
Distance Between Centers: 0
Distance Between Spindles: 29.65"
Chuck Size 1, 2: Collet, Collet
Spindle Nose 1, 2: A2 - 5, A2 - 4
Spindle Bore Diameter 1, 2: 2.4",
Bar Capacity 1, 2: 2.0", 0
Spindle Speeds 1, 2: 6000, 6000 RPM
Spindle Horsepower 1, 2: 15, 15 HP
B - Axis Head Indexing: 225 DEGREE
B - Axis Milling Spindle Speed: 12,000 RPM
B - Axis Milling Spindle Taper: KM
B - Axis Milling Spindle Horse Power: 7.5 HP
ATC For Milling Spindle: 40 ATC
Tool Diameter: 3.54"
Tool Length: 7.87"
Tool Weight: 8.8 LBS.
X - Axis Travel X1, X2, X3: 16.14", 8.66"
Z - Axis Travel Z1, Z2, Z3: 31.69", 30.71"
Y - Axis Travel Y1, Y2, Y3: 5.51"
C - Axis Indexing 1, 2: .0001, .001 Degree
W - Axis Travel Sub Spindle: 31.30"
Rapid Traverse Rates X1, X2, X3: 1181, 1181 IPM
Rapid Traverse Rates Y1, Y2, Y3: 1024 IPM
Rapid Traverse Rates Z1, Z2, Z3: 1299, 1299 IPM
Turret Tool Positions 1, 2, 3: 9
Turret Rotary Tool Speeds 1, 2, 3: 0
Turret Rotary Tool Horse Power 1, 2, 3: 0
Tailstock Quill Diameter: 0
Tailstock Taper: 0
Tailstock Quill Travel: 0
Tailstock Travel: 0
Machine Weight: 18,078 LBS
EIA/ISO, CHANGE TO EIA, B AXIS ANGLE POSITIONING TURNING, BACKGROUND PATH CHECK
MULTI TOOL HOLDER / FLASH TOOL, SHAPE COMP, Y-AXIS CONTROL, SYNCH MILL TAP
THREAD START POINT COMP., DIRECT DRAWING SIZE INPUT, USER MACRO, 600 MACRO VARIABLES
USER MACRO INTERUPT, WORK COORDINATE SELECT, POLAR CORDINATE INPUT, CYLINDRICAL INTERP.
TOOL CENTER POINT CONTROL, SIMULTANEOUS 5-AXIS CONTROL, IEA HELICAL INTERP.
EIA COORDINATE ROTAION, B-AXIS CONTROL,
ENHANCED Y-AXIS MAZATROL FACE 1 AND FACE 2, ROTARTY AXIS SUB MICRON, EIA HELICAL TAP
SUB SPINDLE 1/1000 DEG. POSITIONING, SUB C-AXIS CONTROL, ROTARY AXIS SHAPE COMP.
SECOND TURRET MAZATROL, RE-THREAD,
AUTO PARTS CATCHER
COOLANT THROUGH MILL HEAD WITH FILTRATION

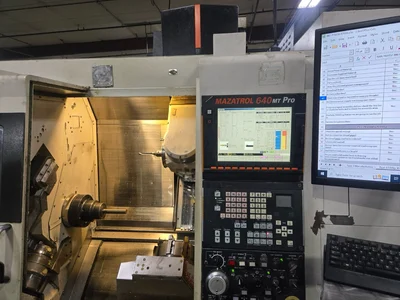

MAZATROL 640MT PRO CNC COLOR CONVERSATIONAL CONTROL
213 PSI COOLAN THROUGH MILL HEAD / 71 PSI FLOOD COOLANT LOWER TURRET
6" 3-JAW THRU HOLE BB-06 CHUCK WITH 2" BAR CAPACITY
6" 3 JAW HYDRAULIC NON THRU HOLE ON REAR CHUCK
B-AXIS .0001 DEGREE INCRA. N/A CONTOURING
B-AXIS INDEX 5 DEGREE COUPLING CLAMP
AUTO CHUCK JAWS OPEN/CLOSE CONFIRMATION 1ST & 2ND SPINDLE
AUTO TOOL LENGHT MEASUREMENT
