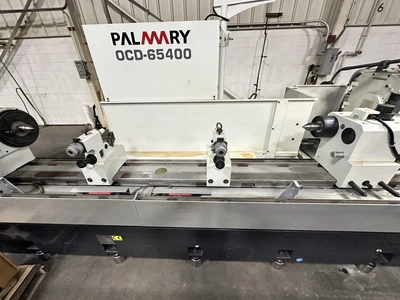

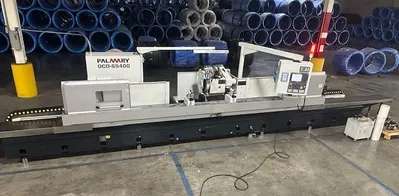

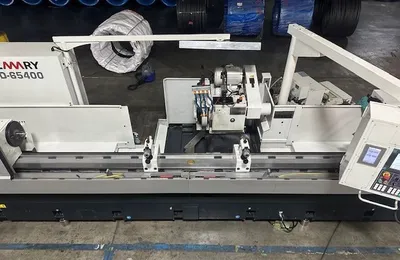

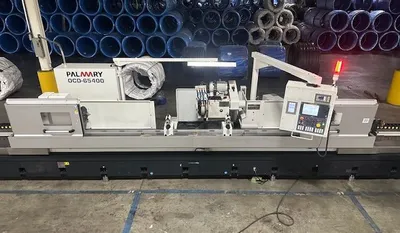

PALMARY OCD-65400 HEAVY DUTY CNC PLUNGE GRINDING CYLINDRICAL GRINDER
Have one to sell?
ConditionUsed
1 available
PALMARY OCD-65400 CNC Plunge Grinding Cylindrical Grinder, 2022 model. Key features: 25.5" swing, 157.4" centers, 24.4" max grinding diameter, 4400 lbs load capacity, and 15 HP spindle. Ideal for heavy-duty applications. Used condition.
Swing Over Table: 25.5"
Distance Between Centers: 157.4"
Maximum Grinding Diameter: 24.4"
Maximum Workpiece Load: 4400 LBS.
Grinding Wheel Size: 25.4" x 8"
Grinding Wheel Speed: 33 M/Sec.
X - Axis Wheel Head Travel: 13.7"
X - Axis Wheel Head Feedrate: .001 ~ 2000 MM/Min
X - Axis Wheel Heads Rapids: 157.4 IPM
Z - Axis Table Travel: 181.8"
Z - Axis Feed Rate: .001 ~ 2000 MM/Min
Z - Axis Rapids: 157.4 IPM
Work Head Center: MT 5
Work Head Variable Speeds: 0 - 250 RPM
Tailstock Center: MT 5
Wheel Spindle Horse Power: 15 HP
Linear Scale On X Axis
Diamond Tool Holder (Tailstock Mounted Type)
Grinding Wheel Soft Starter
Hydraulic Tail Stock

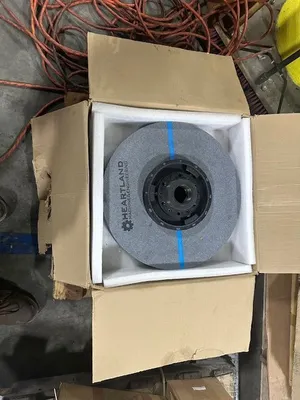

Spare Grinding Wheel Flange

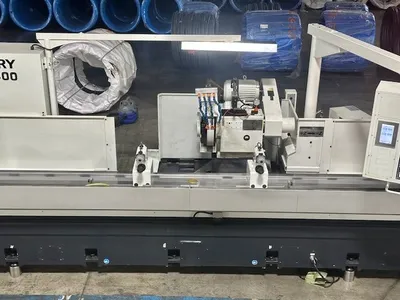

Heavy Two Point Steady Rests (50-250mm) Total of 3
Adjustable 4 Jaw Scroll Chuck 10"

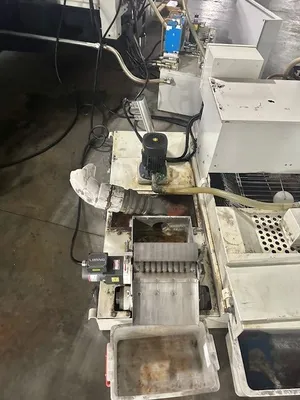

Magnetic coolant Separator
Automatic Grinding Wheel Balancer
Touch Probe Gauge
Gap Control
150 Hours of Run Time ONLY
LINEAR SCALE X AXIS
DIAMOND TOOL HOLDER (TAILSTOCK MOUNTED TYPE)
GRINDING WHEEL SOFT STARTER
HYDRAULIC TAILSTOCK
SPARE GRINDING WHEEL FLANGE
LIVE CARBIDE WORK CENTER
HEAVY 2 POINT STEADY RTEST 50-250MM (3 SETS)
ADJUSTABLE 4 JAW SCROLL CHUCK 10"
MAGNETIC COOLANT SEPERATOR
AUTOMATIC GRINDING WHEEL BALLANCER
TOUCH PROBE GAUGE
GAP CONTROL
FANUC OI-TF CNC CONVERSATIONAL COLOR CONTROL
LESS THAN 150 HOURS
