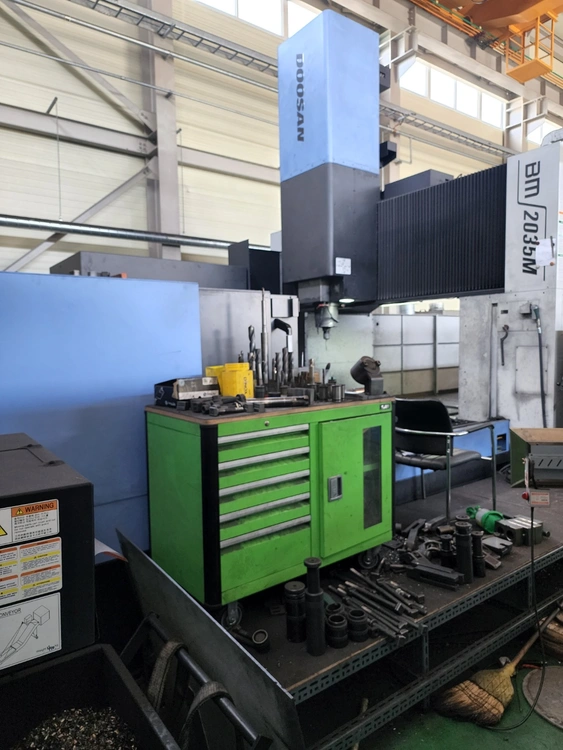

DOOSAN BM 2035M CNC BRIDGE TYPE VERTICAL MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
Table Size : 72.8" x 137.8"
Table Load Capacity: 22,046 LBS.
Distance Between Columns: 86.6"
Spindle Nose To Table: 7.87" - 39.37"
X - Axis Travel: 137.8"
Y - Axis Travel: 80.7"
Z - Axis Travel: 31.5"
W - Axis Travel : 0
W - Axis Positions: 0
Rapid Traverse X, Y, Z: 472, 629, 629 IPM
Cutting Feed Rate: .04 - 315 IPM
Spindle Speed: 8,000 RPM
Spindle Taper: 50
Number Of Gear Ranges: 2
Main Motor: 40
Automatic Tool Changer: 40 ATC
Tool Diameter: 8.7"
Tool Length: 15.7"
Tool Weight: 44 LBS.
Machine Weight: 78,265 LBS.
SCALES X, Y, Z AXIS
DOOSAN TOOL LOAD MONITORING
HAND HELD REMOTE MPG
SPINDLE CHILLER
CHIP CONVEYOR
RIGID TAPPING
FANUC 31IB CNC CONTROL
XYZ SCALES
CHIP CONVEYOR
DOOSAN TOOL LOAD MONITORING
MPG
