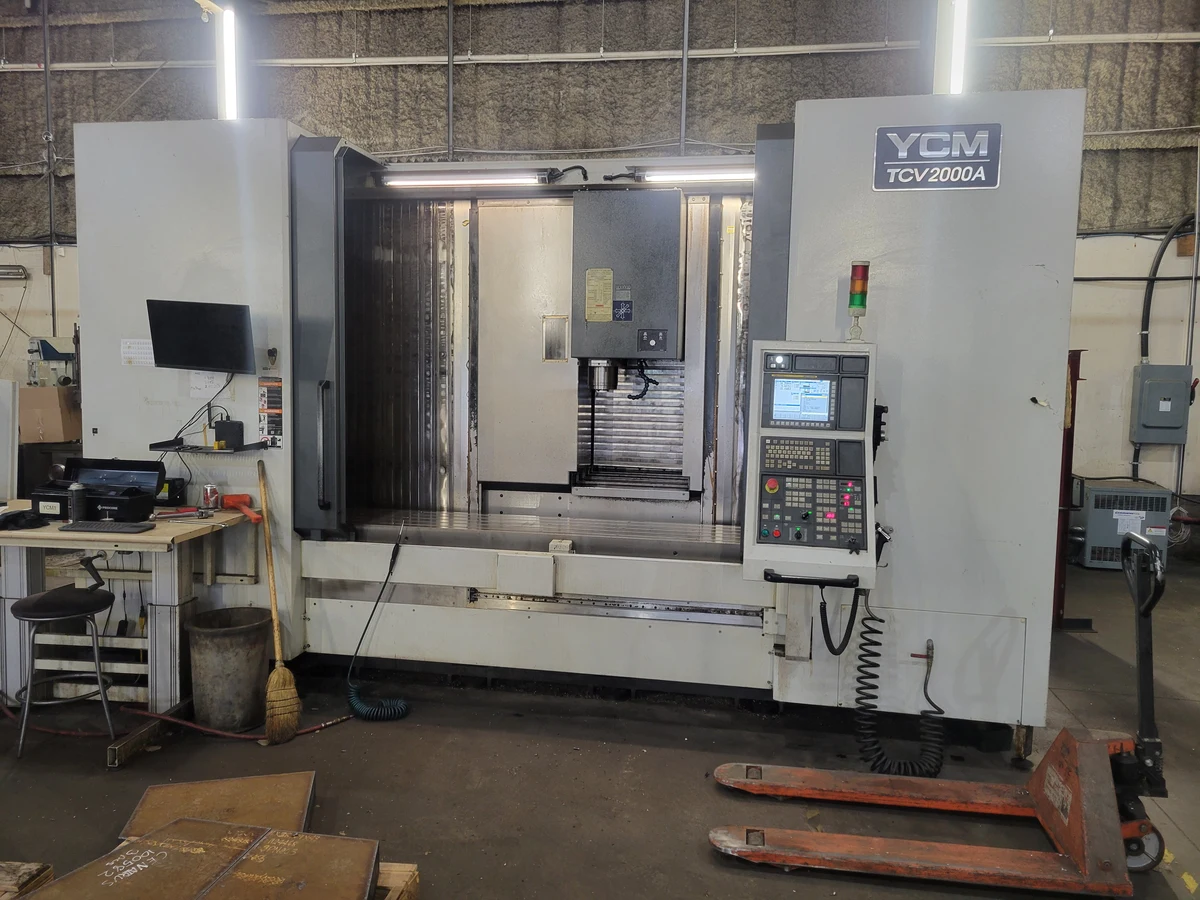

YCM TCV 2000A CNC TRAVELING COLUMN VERTICAL MACHINING CENTER

YCM TCV 2000A CNC TRAVELING COLUMN VERTICAL MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
YCM
Model:
TCV 2000A
Year:
2013
Stock #:
9633
Status:
For Sale

Description

For sale: 2013 YCM TCV 2000A CNC Vertical Machining Center with 78.7" X-axis travel. Features include a 12,000 RPM spindle, 30 ATC, synchronized tapping, and a spindle chiller. Equipped with FANUC MXP-200FB control and manual guide programming.

Number Of Tables / Pallets11
Table-L98.4"2,499.4 mm
Table-W20.5"520.7 mm
Weight on Table4,409 lb1,999.9 kg
Spindle Nose To Table28.35"720.09 mm
X - Axis Travel78.7"1,999 mm
Y - Axis Travel20.5"520.7 mm
Z - Axis Travel21.3"541.02 mm
A - Axis Travel0"0 mm
C - Axis Travel Table Indexing00
Cutting Feed Rate394 in/min.10 m/min.
Spindle Speed12,000 RPM12,000 RPM
Spindle Taper4040
Number of Gear Ranges00
Main Motor30 hp22.4 kW
Automatic Tool Changer3030
Tool Diameter4.3"109.22 mm
Tool Length11.8"299.72 mm
Tool Weight13.2 lb6 kg
Machine Weight29,321 lb13,299.8 kg
ControlCNC (FANUC MXP200i)CNC (FANUC MXP200i)

ADDITIONAL MEMORY
SYNCHRONIZED TAPPING
CHIP CONVEYER
HELICAL INTERPOLATION
WIRED FOR RENISHAW PROBE
FANUC MXP-200FB CNC CONTROL
CUSTOM MACRO
MANUAL GUIDE I CONVERSATIONAL PROGRAMMING
USB / MEMORY CARD SLOT
HAND HELD MPG
SPINDLE CHILLER
1000 PSI MHP COOLANT THRU SPINDLE SYSTEM
WIRED FOR 4TH AXIS
REMOVABLE CENTER PARTICIAN
TOOL LENGTH MEASUREMENT TOUCH PROBE
