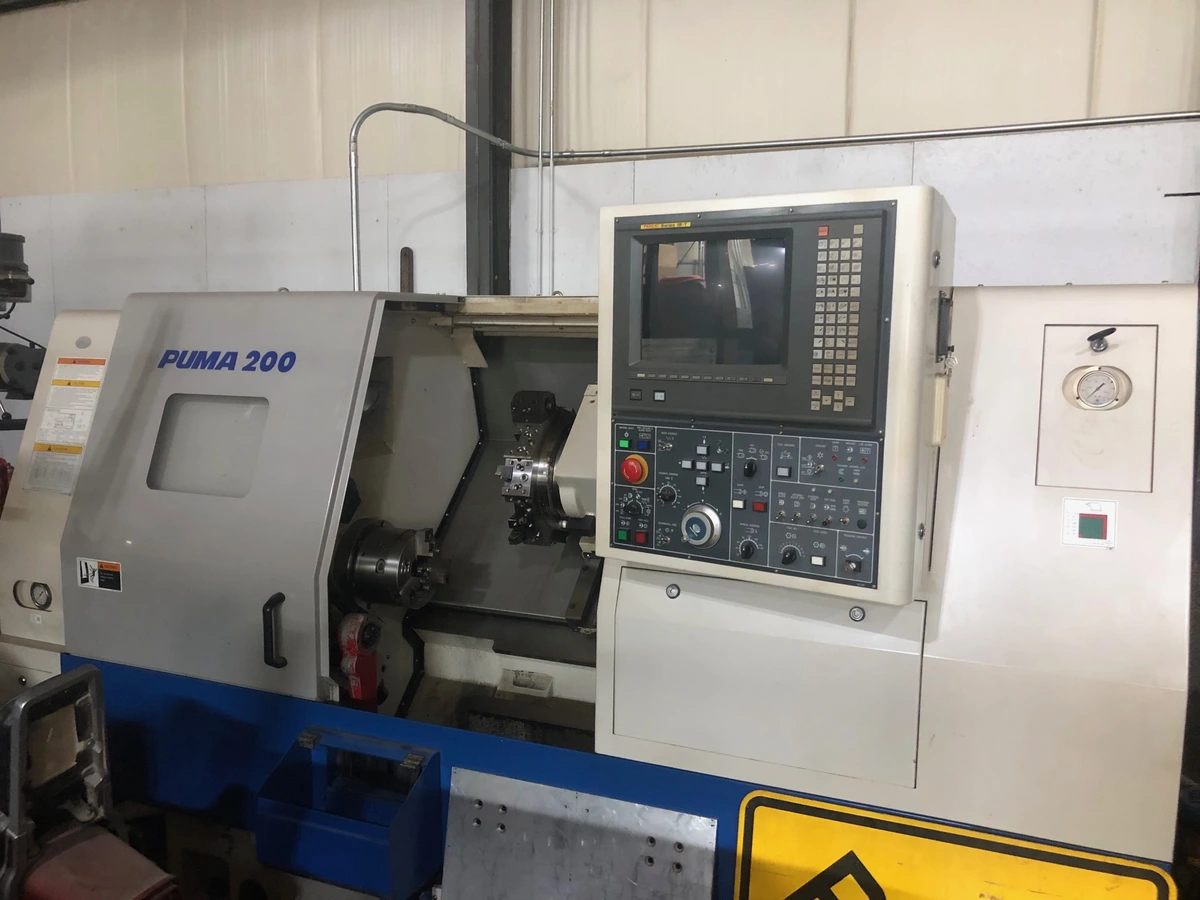

DAEWOO PUMA 200LC CNC TURNING CENTER

Swing Over Bed: 20.1"
Turning Diameter, Shaft Diameter: 13.8"
Machining Length: 21.65"
Distance Between Centers: 0
Distance Between Spindles: 0
Chuck Size 1, 2: 8"
Spindle Nose 1, 2: A2-6
Spindle Bore Diameter 1, 2: 2.99"
Spindle Bar Capacity 1, 2: 2.5"
Spindle Speeds 1, 2: 4500 RPM
Gear Ranges: 0
Spindle Horsepower 1, 2: 20 HP
Spindle Torque: 0
X - Axis Travel 1, 2: 9.53"
Z - Axis Travel 1, 2: 22.83"
C - Axis Travel 1, 2: 0
W - Axis Travel Sub Spindle: 0
Rapid Traverse Rates X1, X2: 787 IPM
Rapid Traverse Rates Z1, Z2: 945 IPM
Rapid Traverse Rate W Axis: 0
Rapid Traverse C Axis: 0
Turret Configuration 1, 2: 12
Turret Rotary Tool Spindle Speed 1, 2: 0
Turret Rotary Tool Horse Power 1, 2: 0
Tailstock Quill Diameter: 2.97"
Tailstock Taper: MT-4
Tailstock Quill Travel: 3.15"
Programmable Tailstock: 0
Tailstock Travel: 0
Machine Weight: 0
