AMADA TECHSTER 64 CNC SADDLE TYPE SURFACE GRINDER
Have one to sell?
ConditionUsed
1 available

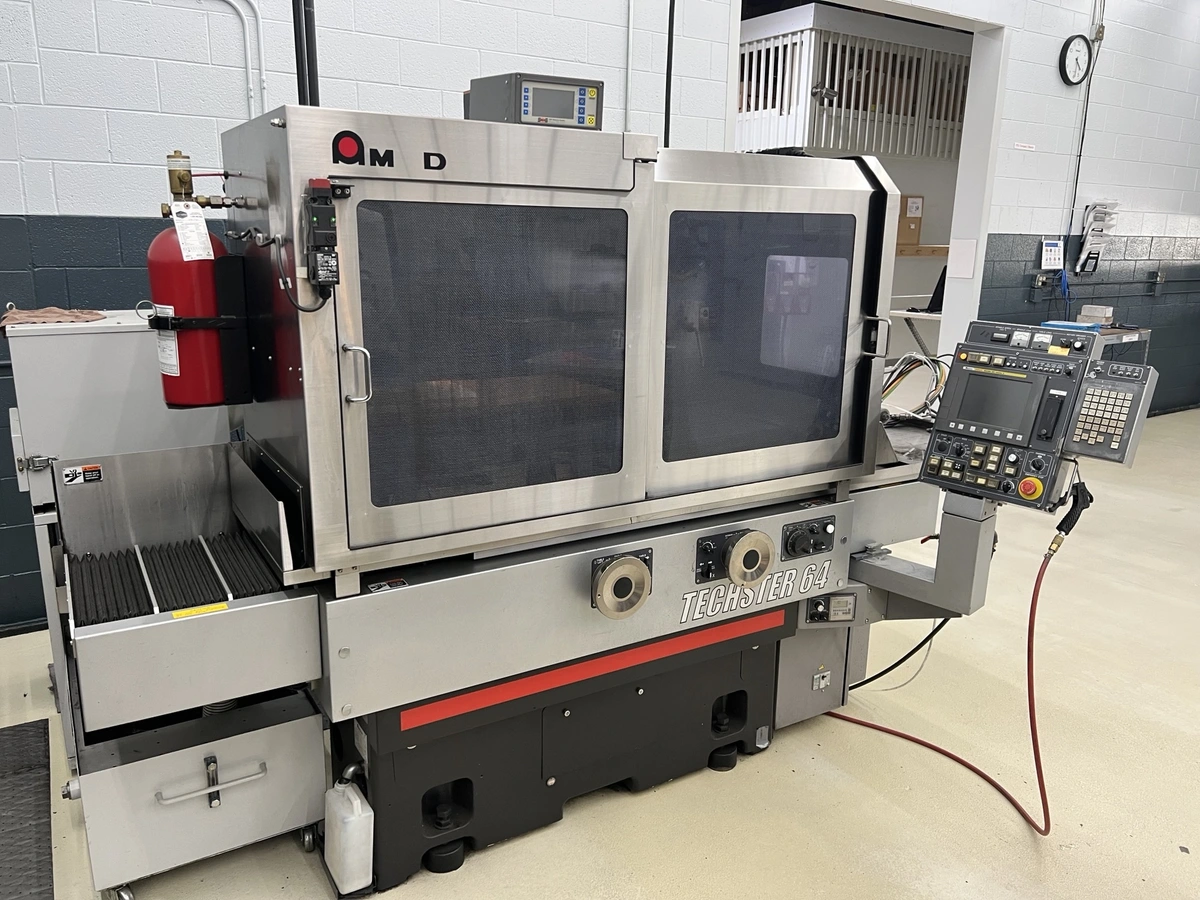

AMADA TECHSTER 64 CNC Saddle Type Surface Grinder, 2014 model. Features include 27" x 15.7" table, 30.7" max longitudinal travel, FANUC 32IB control, 10HP spindle with inverter, diamond disc dresser, and a constant temperature coolant chiller.
Table Working Surface: 27" x 15.7"
Max. Longitudinal Travel: 30.7"
Max. Cross Travel: 17.7"
Spindle Center Height From Table: 19.6"
Standard Chuck Size: 23.6" x 15.7" x 3.9"
Max. No. Of Reciprocation: 150 min
Minimum Input Increment: 0.0"
Wheel Spindle Size: 14" x 1.5"-2" x 5"
Wheel Spindle Speed: 1500/1800 min
Motor Requirement: 10 HP
Floor Space: 94" x 88" x 81"
Machine Net Weight: 8800 Lbs.
Longitudinal Feed: 3.2 - 98 ft/min
FANUC 32IB CNC CONTROL
FULL KEY PAD WITH G-CODE PROGRAMMING
FULL ENCLOSURE
MEASUREMENT SYSTEM (3 FACE TYPE)
SPINDLE 10HP W/ INVERTER INSTEAD OF STANDARD SPINDLE
DR. KAISER MODEL C80FLBAS DIAMOND DISC DRESSER 1500 - 16000 RPM
COOLANT CHILLER UNIT - CONSTANT TEMPERATURE
50 WHEEL OFFSETS
CREEP FEED
MANUAL PULSE HANDWHEEL FOR CROSS AND TRAVERSE FEED
PROFILE DRESS CANNED CYCLE
FANUC MEMORY 80 METERS
