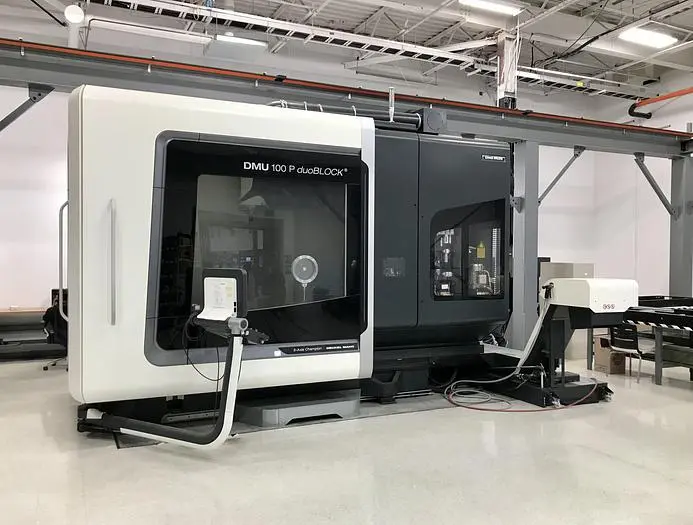

DMG MORI DMU 100P DUOBLOCK CNC 5 AXIS VERTICAL MACHINING CENTER

DMG MORI DMU 100P DUOBLOCK CNC 5 AXIS VERTICAL MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC 5 Axis Machines
Manufacturer:
DMG MORI
Model:
DMU 100P DUOBLOCK
Year:
2018
Stock #:
9366
Status:
For Sale

Description

2018 DMG MORI DMU 100P Duoblock CNC 5 Axis Vertical Machining Center, used. Features 12,000 RPM, 46.9 HP, Heidenhain TNC 640 CNC Control, 63 ATC, coolant thru spindle, 3D Quickset, and more. Ideal for precise, complex machining needs.

Number Of Tables / Pallets11
Table Size - L43.3"1,099.8 mm
Table Size - W35.4"899.16 mm
Weight On Table4,850 lb2,199.9 kg
Integrated NC Rotary Table Size45.3"1,150.6 mm
Main Spindle Horse Power46.9 hp35 kW
Spindle Nose To Table0"0 mm
Main Spindle Speeds12,000 RPM12,000 RPM
Main Spindle Taper100100
X - Axis Travel39.4"1,000.8 mm
Y - Axis Travel49.2"1,249.7 mm
Z - Axis Travel39.4"1,000.8 mm
A - Axis Travel- 120 / + 10- 120 / + 10
B - Axis Travel-30 / + 180-30 / + 180
C - Axis Travel Table Indexing.001 CONTOURING.001 CONTOURING
Rapid Traverse Rate - X2,362 in/min.60 m/min.
Rapid Traverse Rate - Y2,362 in/min.60 m/min.
Rapid Traverse Rate - Z2,362 in/min.60 m/min.
Cutting Feed Rate2,362 in/min.60 m/min.
Vertical Turning Table Size, Number Of Tables00
Vertical Turning Table Speed0 RPM0 RPM
Vertical Turning Table Horse Power0 hp0 kW
Automatic Tool Changer6363
Tool Diameter7.9"200.66 mm
Tool Length25.6"650.24 mm
Tool Weight66.1 lb30 kg
Machine Weight54,031 lb24,508.1 kg
ControlCNC (Heidenhain iTNC530)CNC (Heidenhain iTNC530)
Weight0.000.00

HEIDENHAIN TNC 640 CNC CONTROL
COOLANT THRU SPINDLE
3D QUICKSET
CHIP CONVEYOR
PROBING
TOOL LENGTH MEASUREMENT PROBE
HAND HELD REMOTE PULSE GENERATOR
INNER COOLED BALL SCREWS
OPTIMAL 3 POINT SUPPORT SYSTEM
3D SIMULTANEOUS GRAPHICS
DYNAMIC COLLISION MONITORING (DCM)
WORKPIECE SIZE 63" HT. 43.3"
SIMULTANEOUS 5 AXIS MILLING B-AXIS
