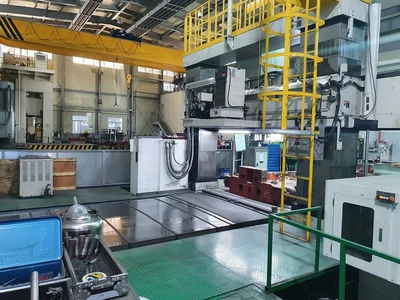

SNK RB 5-M CNC BRIDGE TYPE 5 FACE VERTICAL MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
Table Size : 98.4" X 196.8"
Table Load Capacity: 55,000 LBS.
Distance Between Columns: 122"
Spindle Nose To Table: 70.8"
X - Axis Travel: 206.7"
Y - Axis Travel: 133.8"
Z - Axis Travel: 23.6"
W - Axis Travel : 55"
W - Axis Positions: 0
B - Axis Indexing: 0
C - Axis Indexing: 0
Rapid Traverse X, Y, Z: 985,9875, 315, 237PM
Cutting Feed Rate: 0
Spindle Speed: 40 - 6000 RPM
Spindle Taper: 50
Number Of Gear Ranges: 2
Main Motor: 35 HP
Automatic Tool Changer: 40 ATC
Tool Diameter: 4.3" 9.13"
Tool Length: 15.7"
Tool Weight: 44 LBS
Machine Weight: 0
MANUAL PULSE GENERATOR
ALL MANUALS
SPINDLE AIR BLOW
FANUC 31I CNC CONTROL
MOVEABLE OPERATION PENDENT
90 DEGREE UNIVERSAL HEAD
RIGID TAPPING
SPINDLE CHILLER
CHIP CONVEYOR
