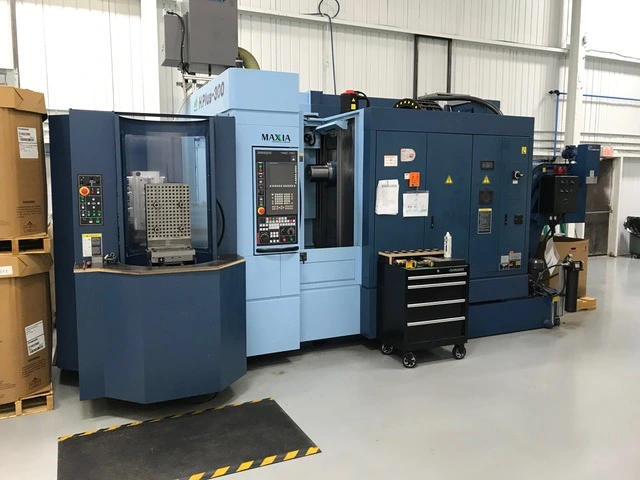

MATSUURA H PLUS-300 PC5 CNC 4-AXIS HORIZONTAL MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
Pallet Size: 11.81" X 11.81"
Number Of Pallets: 5
Pallet Weight Capacity: 551 LBS.
Pallet Surface to Spindle Center: 4.72'' - 24.41''
Pallet Center To Spindle Gage Line: 3.15'' - 22.83''
Workpiece Dimensions: 20.86" X 29.92"
X - Axis Travel: 19.68"
Y - Axis Travel: 22.04"
Z - Axis Travel: 19.68"
B - Axis Travel: .001 NC ROTARY
Rapid Traverse Rates X, Y, Z: 2362 IPM
Rapid Traverse Rate B Axis: 0
Cutting Feed Rate: 0
Spindle Speed: 15,000. RPM
Spindle Taper: 40 CT
Number Of Ranges: 0
Main Motor: 20
Automatic Tool Changer: 120 ATC
Tool Diameter: 5.9"
Tool Length: 11.8"
Tool Weight: 17.6"
Tool Change Time: 2.4 SEC.
Machine Weight: 0

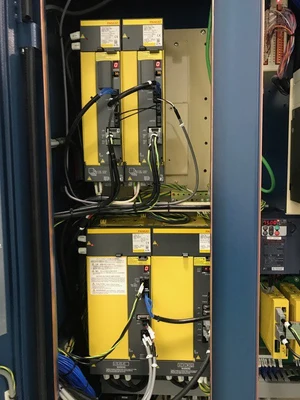

FANUC G-TECH 31I CNC CONTROL
100 RPM DD FULL FOURTH AXIS
5 PALLET POOL
INTERNAL SPIRAL CHIP CONVEYOR
LOAD/UNLOAD STATION
MATSUURA SAFETY SYSTEM-DOOR INTERLOCKS
ROTARY WIPER
SPINDLE OIL CHILLER
POLAR COORDINATE SYSTEM
CYLIDRICAL INTERPOLATION
ALL AVAILABLE MANUALS
TURBO FINE II 640 LITER COOLANT, SCRAPPER TYPE DISK FILTERING BACKWASH
RENISHAW OMP 60 OPTICAL PROBE W/INSPECTION SOFTWARE
RENISHAW NC-4 LASER TOOL PROBE
THROUGH SPINDLE COOLANT 300 PSI
OVERHEAD FLUSHING SYSTEM
UPGRADE CHIP EVACUATION SYSTEM
AEROEX ROX 400 OIL/MIST COLLECTOR
G54.2 DYNAMIC FIXTURE OFFSET
IZ-2/150NF 1000 BLOCK LOOK AHEAD, NANO SMOOTHING W/JERK CONTROL
OPTIMAL TORQUE ACCE/DECEL FUNCTION
ORBITAL TURNING FUNCTION
DATA SERVER WITH HIGH PRECISION CONTOUR CONTROL
