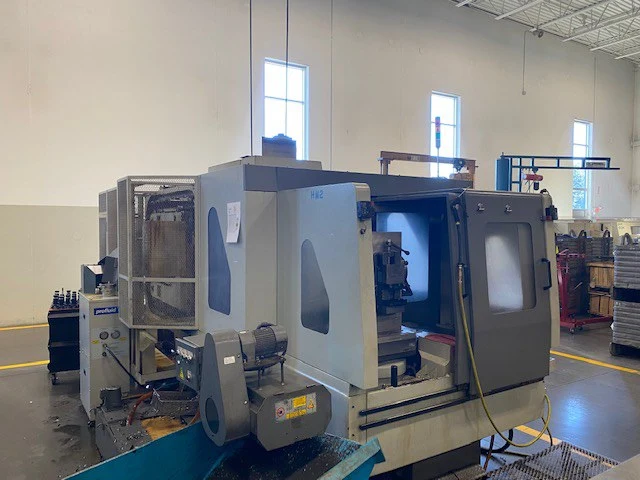

HYUNDAI KIA KH 50G CNC HEAVY DUTY HORIZONTAL MACHINING CENTER

Number Of Pallets: 2
X - Axis Travel: 29.9"
Y - Axis Travel: 27.8"
Z - Axis Travel: 25.6"
Spindle Center To Table Top: 0 ~ 29.5"
Spindle Nose To Table Center: 5.3" ~ 30.9"
Table Load Capcity: 800 LBS.
B - Axis Indexing: 1 DEGREE
Spindle Taper: CAT #50
Spindle Speeds: 8000 RPM
Spindle Speed Ranges: 2
Foot Lbs. Of Torque: 538 FT. LBS.
Spindle Motor: 25 HP AC
Rapid Traverse X, Z, Y, : 788, 788, 788 IPM
Cutting Feedrate: 1 ~ 5000 IPM
Tool Change Time: 5.5 SEC
Auto Tool Change: 60 ATC
Max Tool Dia.: 4.3", 9.6''
Max Tool Length: 15.7"
Maximum Tool Weight: 44 LBS.
Machine Weight (approx.): 26,455 LBS
