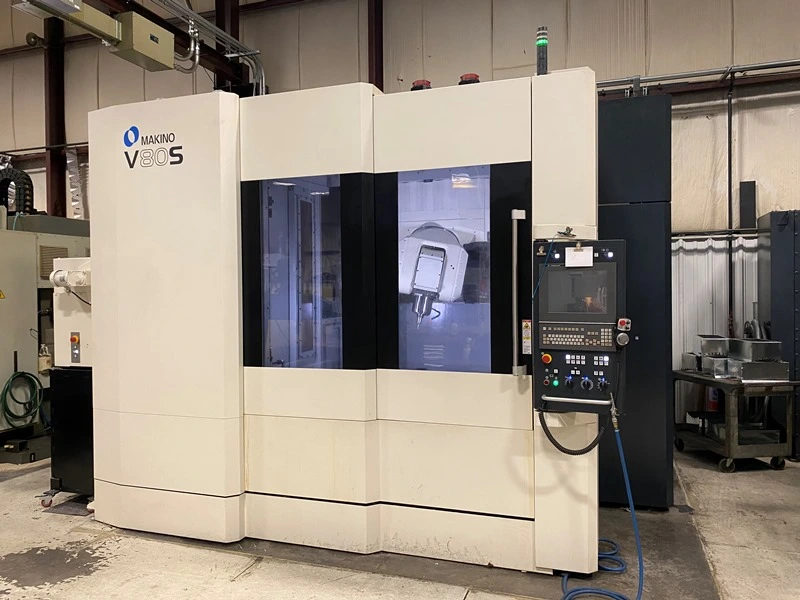

MAKINO V80S CNC 5 AXIS VERTICAL MACHINING CENTER

Number Of Tables / Pallets: 1
Table Size : 51.81" x 39.37"
Weight On Table: 5512 Lbs.
Integrated NC Rotary Table Size: 0
Spindle Nose To Table: 0
Main Spindle Speeds: 20000 RPM
Main Spindle Taper: HSK A63
Main Spindle Horse Power: 30 HP
X - Axis Travel: 51.2"
Y - Axis Travel: 39.3"
Z - Axis Travel: 23.6"
A - Axis Travel: - 30 Degree to + 30 Degree
B - Axis Travel: 0
C - Axis Travel Table Indexing: 0
Rapid Traverse X, Y, Z: 2283 IPM
Cutting Feed Rate: 1575 IPM
Vertical Turning Table Size, Number Of Tables: 0
Vertical Turning Table Speed: 0
Vertical Turning Table Horse Power: 0
Automatic Tool Changer: 40 ATC
Tool Diameter: 2.76" / 3.93"
Tool Length: 11.8"
Tool Weight: 17.6 Lbs.
Machine Weight: 45,320 LBS.
Maximum Workpiece Size: 51.1" x 39.3"
C - Axis Travel Head Rotation: - 60 Degree + 60 Degree
